Fully Automated PE Cold-Applied Tape Production Line with 160-200kg/H Capacity and 1000mm Max Width for Pipeline Anticorrosion

Product Categories

Pre-Insulated Pipe Production Line [311]
3LPE Coating Pipe Production Line [389]
Polyurethane Spraying Foam Preinsulated Steel Pipe Making Machine [104]
Rubber Foam Pipe / Sheet Production Line [64]
PE PP Sheet / Board Extrusion Line [123]
Heat Shrinkable Sleeve [98]
Corrugated Pipe Production Line [61]
Hand Extruder [28]
Geo-Membrane Film Extrusion Line [18]
HDPE/PP Weld Rod [15]
HDPE Water Gas Pressure Pipe Extrusion Line [15]
Electric Fusion Tape [12]

Qingdao Huashida Machinery Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Fully Automated PE Cold-Applied Tape Production Line with 160-200kg/H Capacity and 1000mm Max Width for Pipeline Anticorrosion

Name: Fully Automated PE ColdApplied Tape Production Line with 160200kgH Capacity and 1000mm Max Width for Pipeline Anticorrosion
Brand: HUASHIDA
Price: 10.00 USD

Wholesale Fully Automated PE Cold-Applied Tape Production Line with 160-200kg/H Capacity and 1000mm Max Width for Pipeline Anticorrosion from china suppliers

Brand Name : HUASHIDA

Model Number : PE Board

Certification : CE, ISO9001:2008

Place of Origin : QINGDAO,CHINA

MOQ : 100 Meters

Price : US$10.00 - 12.00

Payment Terms : L/C,D/P,T/T,Western Union

Supply Ability : 1000PCS/Day

Delivery Time : 60days

Packaging Details : Standard Package

Adhesive Coating Thickness : 0.1-0.5mm

Basing Tape Max. Width : 1000mm

Basing Tape Thickness : 0.2-1mm

Capacity : 160-200kg/H

Function : pipelines Anticorrosion

Customization : Customizable

Contact Now

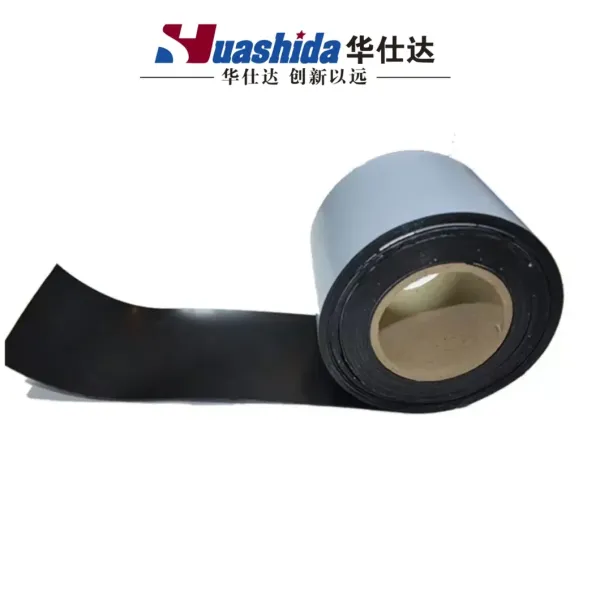

Cold-applied anticorrosion tape making machine is designed for producing the PE tape for protection of underground or overhead pipelines in oil, gas, petrochemical, and wastewater industries.
Whether you need a cold-applied tape production line or cold-applied tape products, we can provide them for you.

The system is fully automated, reducing labor costs while maintaining a high standard of quality and consistency. The machine is ideal for use in high-demand industries where pipeline integrity is critical, and the risk of corrosion must be minimized.

Key Features:
Product Type: PE Cold Applied Anticorrosion Wrap Tape
Material: High-Quality Polyethylene (PE)
Basing Tape Thickness: 0.2 - 1.0mm (adjustable)
Adhesive Coating Thickness: 0.1 - 0.5mm (adjustable)
Max. Basing Tape Width: 1000mm
Production Capacity: 160 - 200 kg/H
Automation: Fully Automatic & Computerized Control

Fully Automated PE Cold-Applied Tape Production Line with 160-200kg/H Capacity and 1000mm Max Width for Pipeline Anticorrosion

The process of making cold-wrapped tape:

1.Base Film Extrusion
Raw Material Preparation: Polyethylene (PE) is prepared as the base film raw material.
Extrusion Molding: The raw material is heated and melted in an extruder, then molded through a die to form a continuous base film.
Cooling and Shaping: The extruded base film is cooled and shaped using cooling rollers to ensure uniform thickness and consistency.

2.Adhesive Coating
Adhesive Preparation: Butyl rubber are prepared to ensure proper viscosity and stability.
Coating Process: The adhesive is evenly applied to one or both sides of the base film using coating equipment to form an adhesive layer.

3.Slitting
Slitting Preparation: The coated base film roll is prepared, and the parameters of the slitting equipment are adjusted.
Slitting Operation: The wide roll is slit into cold-applied tapes of the required width using slitting equipment.
Winding and Packaging: The slit cold-applied tapes are wound into rolls, packaged, and prepared for shipment.

PE basing file extrusion line Equipment

	Equipment Name	Quantity
1	Vacuum automatic feeder	1
2	Hopper dryer	1
3	SJ-75X30 extruder	1
4	Hydraulic screen changer	1
5	Die head mold type 1000	1
6	Multi-roller tape-casting machine	1
7	Winding machine	1
8	PLC computer control system	1

Adhesive coating machine Equipment

No.	Equipment Name	Qua.
1	Frame	1 unit
2	200N·M Magnetic powder brake + Silicone stick 1300mm with corona processor	1 unit
3	100N·M Magnetic powder brake	1 unit
4	100N·M magnetic powder clutch	2 unit
5	200N·M magnetic powder clutch	1 unit
6	Screw	1 unit
7	Force-feed device	1 unit
8	Constant pressure system	1 unit
9	Adhesive delivery pipe	1 unit
10	Winding machine	1 unit
11	Unwinding machine	2 unit
12	Coating compound equipment	1 unit
13	Main engine frequency converter	1 unit
14	Extruder frequency converter	1 unit
15	Thermal switch	1 unit
16	PLC	1 unit

Fully Automated PE Cold-Applied Tape Production Line with 160-200kg/H Capacity and 1000mm Max Width for Pipeline Anticorrosion
